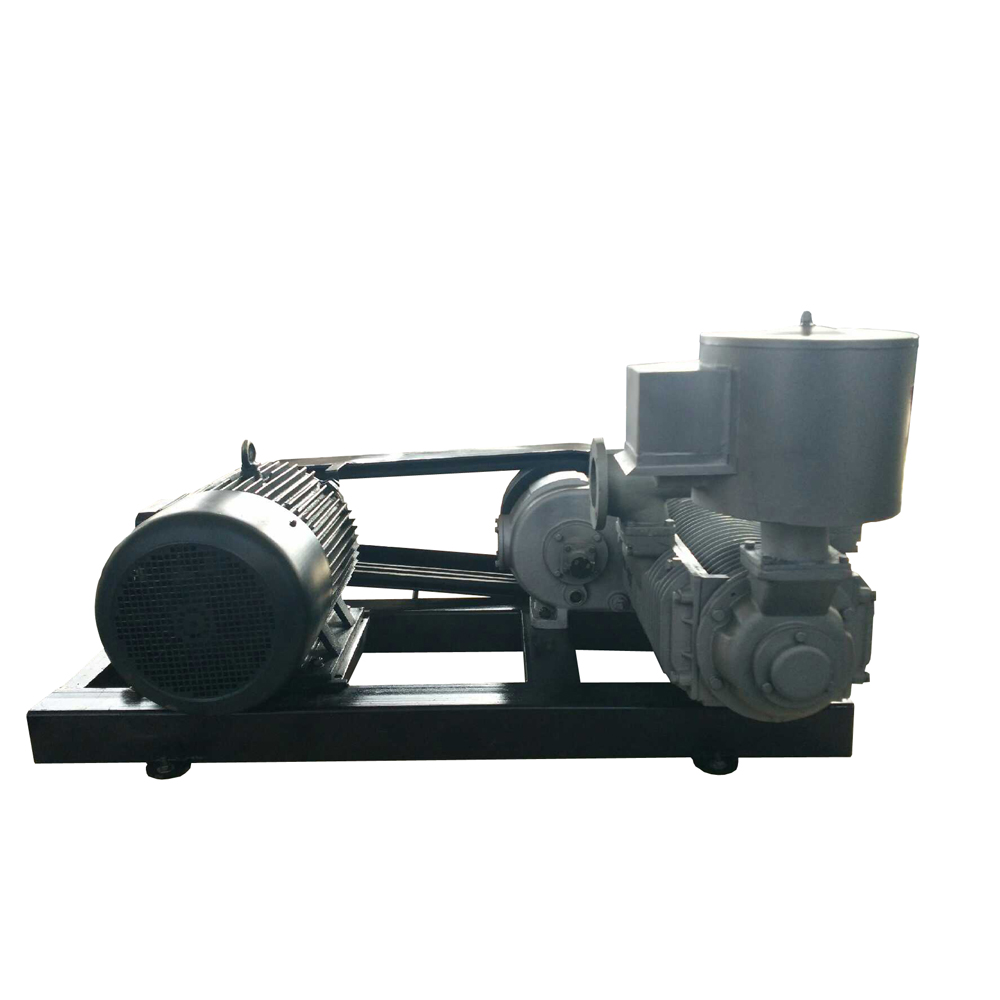

The motor driven cement silo compressor is specially designed for dry bulk powder material pneumatic handling (transporting, conveying, unloading). Mainly the compressor will be equipped on the bulk cement tanker, bulk truck, bulk powder material silo, bulk flyash trailer and so on. In accordance with the driven method, it can be classified into two types. One type is driven by the main truck engine and connected with PTO. Another one type is driven by additional diesel engine, electric motor or hydraulic motor.
MODEL: GWB-10.1M
SPECIFICATION:
1,Compressor:
—Oil-free of output air
—Stationary type one cylinder
—Output air volume：10CBM
—Working air pressure: 0.2MPa (2bar)
—Power consumption: 28kw
—Rotation speed: less than 1000rpm
—Continuous working time: less than 100min
—No limit of the rotating direction
—With supper long 3 years warranty
2, Electric motor
—4 poles, 22KW
3, Others
—With support frame
—Pulley wheel and belts system
ADVANTAGE:
—Absolutely oil-free of discharge air
—Big air volume
—No need air tank
—Fast to be in the rated working status
—No limit of rotating direction, without harm caused by wrong rotation
—Simple maintenance
APPLICATION:
Used for the transportation of dry bulk cement, fly ash, lime, grain, sugar, plastic, feedstuff and other dry powder material. Also to be used in the area where big air volume and middle-lower pressure are needed.
